Blog Code

Experimenting with Maze code in C++

Starting in Ruby

Recently I’ve been chipping away at Jamis Buck’s ‘Mazes for Programmers’. I’m loving it and highly recommend the book. The code examples are quick to write, intuitive and good to learn from. They are written in Ruby and quietly introduce good design practices.

Whilst I’m working through the book I’m uploading my work in progress to It’s been a while since I’ve pushed anything to GitHub because I started working on some of the ‘try at home’ sections at the end of each chapter; as I was working through it I started restructuring the core libraries on a new branch. I’ve gone down the refactor rabbit hole.

Moving to C++

I’ve managed to distract myself further by making my own maze library in C++. At the time of writing the repo is a simple C++ library which links into a demo and unit tests. My goal here was to brush up on my C++14 and experiment with continuous build systems. Over the last few days though I’ve been irked by the clunky design on the first draft. There’s lots of aliasing early on, the code was already feeling flabby.

Playing with templates

Today I’ve been experimenting with a templatised version that compiles down to practically nothing. I wanted to exploit that these mazes are fixed size, so I can use std::array to store data rather than std::vector. This means a huge amount of work can be done at compile time. Today’s experiments are at

The main class Grid2D is declared as a template with fixed rows and columns. Having the rows and column sizes declared at compile time means that a lot of the API boils down to constexpr functions. Rather than have a separate ‘Cell2D’ class, each Grid2D declares a nested Cell class that is a lightweight wrapper for querying individual cells in the maze graph.

Screen Shot 2017-06-11 at 17.26.09

I was hoping that I could reduce each cell to be a single integer, it’s index in the grid (row * NUM_ROWS + column). Unfortunately reducing to an int was not possible because each cell has query methods that reference non-static methods in Grid2D, so they also need to store an instance pointer to their owning grid. The alternative to this aliasing would be to pass the grid to every Cell function call, but that breaks the encapsulation and does not read well in code. However when building optimised the pointers boil away.

I’d prefer to store each cells Grid2D by reference rather than pointer and I’m exploring options as to whether that’s possible with std::array. As far as I know one can only use std::array on simple data types, no fancy construction is allowed, so the Cell class is friendly with Grid2D which does all the initialisation.

Regardless the simple test case compiles down ridiculously small, just 4 ops!

Screen Shot 2017-06-11 at 17.23.56

Screen Shot 2017-06-11 at 17.26.50

Blog Music

Chains display and inputs

I wired up the the Chains prototype to display a series of events which can be controlled from the SoftPots. It’s cobbled together with scruffy code but it’s encouraging to see something responding real-time.


There are some glitches in the inputs where it can jump in certain cases – it’s like there’s noise on the pots. This could be due to it being mounted on cardboard as the flex picks up subtle pressure changes. It’s pretty sensitive, just massaging the pot with a fingertip has a noticeable effect.

The display was up and running pretty quickly with Adafruit GFX and SSD1306 libraries. I bought some displays a while back, I think this one is a cheap version on Amazon and there were some helpful tips in some of the comments. I thought I would need to change the I2C address but I there was no need – just install the libraries in the Arduino IDE and experiment with the Adafruit demos, nice!

Plan for tomorrow:

  • Hook up the buttons and the input ports
    • buttons just needs pull up resistors
    • clock/reset inputs need transistors
    • analogue inputs need protection op amps
  • Mock up a first pass interface to record input from CV and softpots
    • I’m not sure how best to data collect so I’ll run a through iterations on a local repo and see how it goes.
  • Experiment averaging the inputs on the pots to avoid glitches.
  • If there’s any time I’ll wire up the outputs though they’ll be limited to 8 bit PWM for now.
Blog Music

Prototype rig for new module

Today I mocked up a rig for a rhythm module I’ve been dreaming up for ages called ‘Chains’. The three vertical bars are SoftPot linear touch-sensitive potentiometers and the screen will give visual feedback on what’s going on internally.


The five inputs on the left will handle clock, reset and two individual analogue inputs which can be recorded to each chain – I’ll need some kind of toggle switch here to select.  The fifth input is an idea I’m keen to play around with: quantisation and anti-quantisation. The idea is 0V will leave a recording as-is, +5v will pull an event to the nearest 16th or 32th note, but -5v will push it away by the same amount. I have no idea if this will work but it’s there to try as the whole idea is ways of making rhythm more organic.

There are space for a few more inputs as needed but I’m going to start simple. Most of the interaction is done through the buttons under the screen. I’m using big, clear buttons for actions rather than fiddling around with a rotary encoder as this needs to be fast and intuitive for live interaction. The buttons will handle things like record, clear, motif load/save. I also need something for motif length adjustment – maybe individual tempo too – and I’m sure there will be more idea so the sixth button is for experimentation or may end up being a dreaded ‘shift’ button so I can double up operations on the five other buttons.

Finally the outputs on the right simply dump out whatever is on a particular chain at that point in time, be it CV or gate info. I’m glad I built this on cardboard because it gave me a better sense of positioning the controls away from the pots, it’s fun developing UX physically (well, it’s not really UX if you’re a purist, but it’s a step up for me dreaming things up and expecting them to work first time!).


From the back the board is a scramble. I’m using the bigger Arduino as a mock up purely because I don’t know how many inputs or outputs I’ll need for now, it’s overkill. The final version I’d like to bake into an AVR but I’m thinking that being able to upload firmware will be a massive boon for rapid development if I ever made this thing commercially.

Blog Code

Designing clean API for AVR round-robin ADC – part 2

I’ve been learning more C++ 11/14 and I initially wanted to build a nice API using variadic templates. When used correctly one can build a clean API with templates that compile down to very small code. Unfortunately AVRGCC does not yet support C++ 11/14 so I can’t follow that route.  Here’s my bullet point summary of the day’s findings:

  • Early template classes experiments messy/confusing.
  • C++0x14 does not work on AVR right now anyway.
  • Linked lists simply don’t optimise away.
  • Virtual methods don’t optimise away.
  • Best approach seems to be general class.
  • Static functions in a namespace compile even smaller than class.

My strategy here was to start with a nice OOP design and rapidly iterate ideas using Compiler Explorer to see where it took me.  I built with AVR gcc 4.5.3 with the flags -Winvalid-pch -Wall -Wno-long-long -pedantic -Os -ggdb -gstabs -mmcu=atmega328p -fdata-sections -ffunction-sections -fsigned-char

Test 1 : Linked lists

My starting point was a singly linked list of AdcInputs. The AdcManager polling the next via interrupt whilst traversing the list. The derived classes would present a nice API.


Given my code sample I was hoping the compiler would be clever enough to optimise a lot away, but I am storing data in virtual classes so there’s a lot of vtable setup, calls and the pointers in the linked list are still used in code:


Tests 2 – (n-1) : No man’s land

Here’s where it gets a bit messy going through my notes because I didn’t keep copies of all of my in-progress code. In summary I realised that virtual classes and linked lists were not the way to go and experimented with template magic and functors before settling on a simple solution of a central do-it-all manager class.

The problem was making a reasonably friendly access interface out of it. For my applications there are only a few variations on the types of ADC interface, they mostly store a uint8_t as the value – with the edge case of using 10 bit resolution – so would it be possible to cram all the other data into another byte? I could use say 2 bits to store the type of interface and the remaining 6 could be used by each interface’s implementation. For example, storing a ‘pushed’ state for a SoftPot.  In total that gives me a standard 2 byte struct for each interface which I can simply store in an array for the manager.

The bit wrangling ideas came strongly from this hybrid data structures video. They use a heavily templatized method to access bits whilst remaining robust enough to avoid memory stamping.  I’d like to that more in future but for now I’m just using plain old bit fields.

Swapping out the linked lists for a fixed array adds memory overhead because that chunk of memory is always used. However I select AVR chips based on spec; if I only need 3 inputs then I look for the closest match chip rather than an overspecced AtMega328.

This code is an experiment during this stage.  It’s not pretty but I’m sharing it because it helped me realise the value of using static correctly in optimisation. Here’s what happens when you remove the static keyword from AdcRunner::update():


Test 3 : template accessors

With the manager ‘class’ now simply being a bunch of static functions, I’m using a templatized base class to give the user access to each one. Here’s the core class. ADC_TYPE is an enum that defines my fixed set of ADC interfaces. The interface stores a reference to data which is handled by the manager. The idea is as a client you use these objects on the stack merely as accessors to the manager’s data, and that the manager uses these objects to update its data correctly.

template <Type ADC_TYPE>
class AdcInput
  AdcInput(Data& data) : m_data(data) { }
  static Type getType()        { return ADC_TYPE; }
  static uint8_t getTypeBits() { return (uint8_t)getType() & 0x03; }
  Data& m_data;

Here’s an example concrete implementation softpot input.  It has accessors for getting the value and determining if it is pressed.  The update method will be called from the manager, it’s a bit ugly but it’s in progress.

class Softpot : public AdcInput<kSoftPot>
  Softpot(Data& data) : AdcInput(data) { }
  uint8_t getValue()   { return m_data.value; }
  bool isPressed()     { return ( & (1 << 4)) != 0; }
  void adcUpdate(); // TBC... this is how the manager updates this data

Here’s some code to get a feel for the API

  Pot p1 = get_adc<Pot>(0);
  Softpot p2 = get_adc<Softpot>(1);

  for (;;)
    uint8_t val = 0;
    if (p2.isPressed())
      val = p1.getValue() + p2.getValue();
      val = p1.getValue() - p2.getValue();



The full version of the test code and compiled output is here and the generated output is on the right.

The current problem with this is that there is no fail-safe on getting the wrong type of object. For example in the above code I have a pot on 0 and a softpot on 1, but there is nothing stopping me trying to read 0 as a softpot. This is not the right place to use exception handling. One option is to store a block of clearly invalid data like 0xFFFF, which you can pick up in debug, but it irks me.

Next step is to try this in action on the AVR and look at the generated assembler with the interrupt handler in place. I have no doubt it will be a little bit longer than writing the code in plain C but I wanted to experiment with something more scalable, and I’ve learned a few things on the way hence this blog post.

Also learned today

  • Today I needed a nice UML editor so I turned to Stack Overflow for advice.  I initially tried Umler, then ArgoUML because I like the developers but it’s a real fiddle (no cut/paste/undo!) so I went Dia which immediately felt nice.  Also jogged my UML memory with this guide.
  • It’s hard to keep blog posts short. Bear with me on this, I’m learning the ropes!

Back in the swing of things

I’m not sure how but over the past few months the subscriptions have shot up on my youtube channel. It’s motivated me to get back into making. A young viewer asked if it’s possible to make robot arms so I dusted off the bricks and made a little tutorial.

This is not really one of my arts projects but I’m putting it on the front page just because I’ve been out of the loop for ages and I want to keep busy.

Blog Code

Designing clean API for AVR round-robin ADC – part 1

softpotSeveral of my recent 8 bit microcontroller projects need multiple analogue inputs. I want a nice API that allows me to have different interfaces for getting analogue values, for example reading a straightforward pot as 0-255 or 0-1023, or a SoftPot membrane potentiometer where I may also want to track whether or not it’s
currently pressed.


Reading analogue inputs on AVR chips takes time and the lazy approach to reading an analogue value is to set up the registers to read a value and simply wait for it to come in.  You do something like this:

    ADMUX |= _BV(MUX0);
    ADMUX |= _BV(ADLAR);
    ADCSRA |= _BV(ADPS1) | _BV(ADPS0) | _BV(ADEN);
    while (ADCSRA & _BV(ADSC));	// !

That while loop is just eating cycles whilst we’re waiting for the ADC to return a result.

adc_interruptThe best way to avoid this wait is to set up the ADC to start reading a value and when it’s ready send an interrupt to get the result.

The interrupt can either use the value immediately or stash it away in a stored value so it can be picked up later on in the main loop.

This approach saves wasting cycles but still has a problem: the ADC can only read one value at a time and I need multiple inputs.


The workaround for this is to make the interrupt run continually and constantly read each ADC value in turn.

The poll requests requests a value for a certain analogue input and when the ADC interrupt is fired off, it re-polls for the next one.  This runs perpetually whilst interrupts are enabled.

The interrupt can act on the values immediately or – if we’re not concerned about keeping everything perfectly in sync – the values can simply be stored in data so it can be picked up in the main thread.

In the next post I’ll explain how I iterated this round-robin in building a fast and clean API for AVR chips.


Brain/Project Bootstrap

Since my PhD collapsed I’ve was out of action on the making front. I’ve taken some time to clear my head and now I’m getting the urge to create things again. It’s coming on strong and the problem is when this happens I get dozens of ideas at once, and then I start them all at once, so it all falls apart pretty quickly!

To get past this I’ve resolved to take the path of the the self-indulgent project dev blog. Whatever happens on dev days gets written, the good bits and the bad bits – and there are a lot of bad bits. I’m hoping that this will give me a healthier perspective on ‘failure’ days where I’m going in circles making an API that it turns out I didn’t need, or when I get one of those days where Windows/installers failing seems to waste a whole day *

So for starters, here’s what went well today. I drove up to Nottingham to get myself a signal generator I can gut to make a music interface.  Here’s whats I gots:


It will anger radio hams that I’m gutting such a beautiful thing but it’s bought more as spares and I’d probably fry myself if I tried to wire it up to the mains. I’m aiming to make this into an exploratory audience-based music interface, largely focused on rhythm. This is exactly the sort of thing my PhD was focused on – dammit – but putting frustrations aside I’m going to just going to build what I can an see where it takes me.

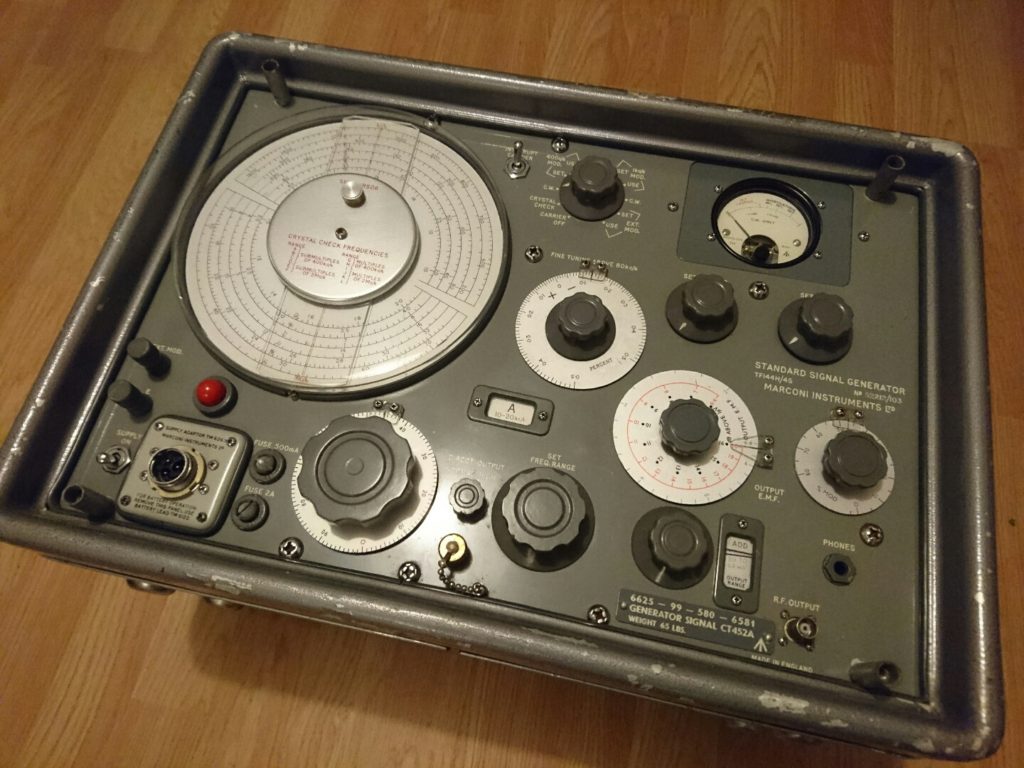

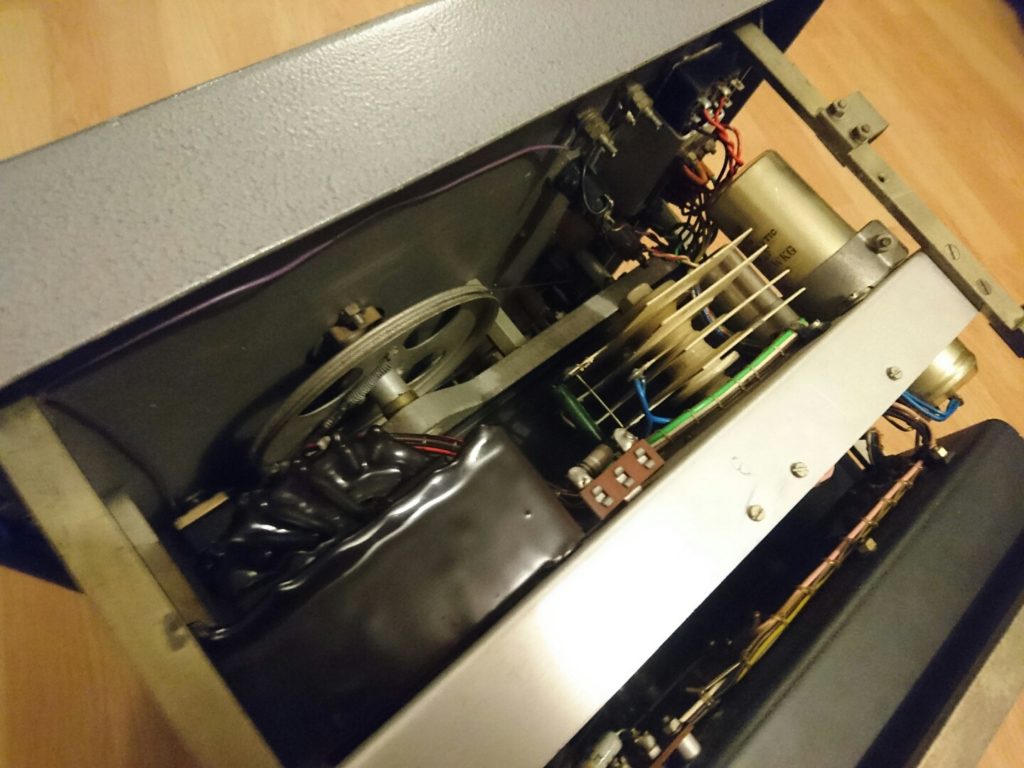

The unit is a Marconi CT452A and it weighs 65lbs. The insides are incredible, I was expecting straightforward vernier potentiometers on the controls but it is heavily mechanical with springs, chains and gears.  I’ve not opened the main electronics section but there are a number of exposed valves and massively enlarged transformer, caps and bridge rectifier.  It’s an old selenium one from General Electric:


So the first part of this project – the pick up – is done. Next I need to strip back the innards and see how easily I can interact with those controls.

What didn’t go so well today was I was planning to do a bit of sight-seeing in Nottingham, but I got there so late I missed the castle. I made it the famous pub ‘Ye Olde Trip To Jerusalem’ though and the contemporary arts gallery, which was typically pretentious, but in the foyer I found an awesome book on Kubrick by Tashen. Actually one good thing there was a dark corridor with sound in the walls, I’d love to have been in a bigger version of it:


I drove today to ‘Black Box Thinking’ by Matthew Syed on audible, which is part of the motivation for me getting into writing this. It’s really good.  Another good thing was this morning I managed to squeeze one more desk into the workshop which is a hugs win as every other surface is covered in half-finished projects.

* Footnote: on failed APIs and Windows-waste days. I will blog a little about these later because despite being an annoyance it’s wrong to consider them a fail or waste; I learn a lot from these things, the problem is just I don’t write it down anywhere so I forget!  I’ll aim to post about the API experiments tomorrow, it’s an interface for reading Pots and SoftPots on AVRs.

Blog Code

Self-generating C++ from embedded Ruby

Disclaimer to protect my CV: this is not something I do professionally!

I often need to generate pitch or sample lookup tables for my AVR projects. I usually generate these C++ headers with little ruby scripts.  An evil thought struck me during a long drive… I don’t like these separate little scripts, I want the script inside the header, so if you #include it you get the data, but if you run it with ruby it rebuilds itself.

The thought preoccupied me for the journey.  Preprocessor macros start with a hash, and ruby uses hashes as comments, so you can hide ruby code in a #if 0 block.

The problem was then how to stop ruby from parsing the C++ the file contains. That’s simple enough, you can hide =begin and =end in #if blocks.

The file reading and writing itself is handled using gsub() and some careful regexing. It searches for the tailing end of the table declaration and the hash of the #if that trails it, and the replaces that block with generated values.

Just to be a swine I’ve condensed the Ruby to be borderline unreadable. Save this as ‘notes.h’ and run it through ruby:

#if 0
# Run 'ruby notes.h' and this rebuilds itself.$0);IO.write($0,i.gsub(/(\]\s=\s{).+?#/m,"\\1 \n #{1024.times.collect{|n|(((44100.0*64.0)/(2.0**(n.to_f/(12*16))*110.0))).to_i}.join(",\n ")}\n};\n#"))
uint16_t freq[1024] = {
  // ... the rest here will be regenerated
#if 0

Note the regex can’t just search for the ‘] = {‘ verbatim because it would pick up the first instance of that expression in the gsub itself; this code is reading its own text and it would replace the regex! I bypass this by swapping spaces for \s ‘]\s=\s‘.

Here the evil ends.  #include "notes.h" works fine and you can rebuild any time – and risk trashing everything if you have made the tiniest typo :)  Not a good way to approach development but a fun puzzle.  The next challenge is to do this with compile-time table generation using variadic templates.


Berlin TBC

Featuring miniature music machines this December.



Diverge @ ORT Birmingham

Ryan and I getting into our polyrhythmic headspace with LEGO sequencers and synths.  The full performance is on youtube or a you can see a snippet on vimeo.
